Light-matter interactions

The key to working at the nexus of optics and biology is utilizing light-matter interactions in novel ways. In very simple terms, when a photon incident at an atom or a molecule interacts with it, there are three possible outcomes.

Possible outcome 1: The photon is scattered such that the emergent photon has the same energy as the incident photon, i.e., they have the same wavelengths.

Possible outcome 2: The interaction between the molecule and the photon(s) is non-linear, i.e., the emitted photon has a different optical wavelength compared to the incident wavelength. The energy of the emergent photon could be higher or lower, depending on the nature of the interaction.

Possible outcome 3: The photon is absorbed, but the energy is dissipated non-radiatively, i.e., via heat.

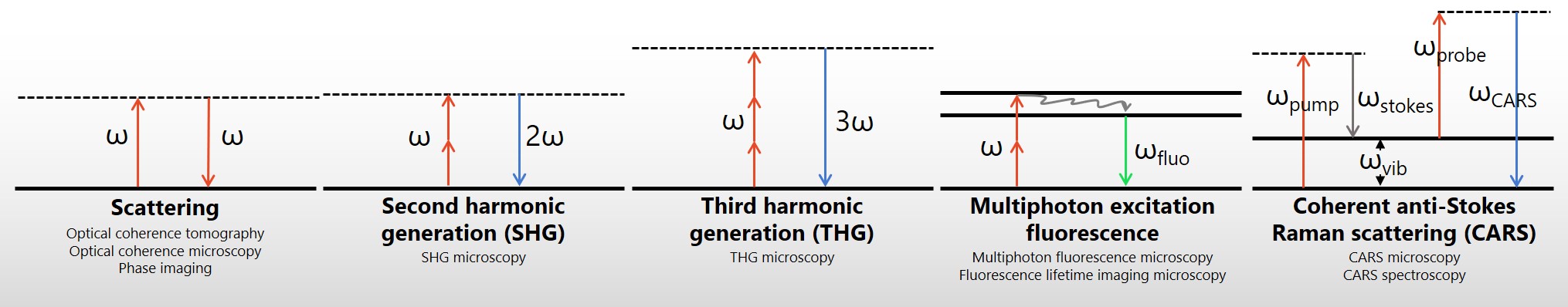

Jabslonski diagrams of light-matter interactions

In each of these cases, the interaction can be modelled by tracing the electronic states. Upon absorbing a photon, the electron could either move to a virtual energy level and immediately dissipate energy or move to another quantum energy level permitted for the molecule. The figure above shows some possible combinations. Utilizing these interactions for biological/ biomedical imaging is our goal at BIL.

Absorption

One of the most fundamental light-matter interactions is the absorption of a photon that causes an electron to move up from its ground state to an excited state. The excited state could be virtual or a quantum level in a molecule depending on the energy of the photon and the difference between the energy levels in the molecule. At a microscopic scale, absorption can be described as the polarizability, P, of the media in response to the optical field, E, via the electrical susceptibility, χ .

refers to the first-order susceptibility, which is in response to the optical field where just one photon is absorbed. Multiphoton absorption, where more than one photon can be absorbed by the molecule at once, can also be included in this equation.

The different optical fields could be of the same or different wavelengths depending on the source. The electric susceptibility tensor encodes the material properties such as the molecular and vibrational energy levels, complex-valued refractive index, birefringence, and microscale structures.

At a macroscale, absorption manifests as attenuation to the intensity of light, dictated by the absorption coefficient, . For a beam of light travelling through a material of thickness z, Beer-Lambert's law dictates the intensity, I(z), at the other side.

The absorption coefficient depends on the wavelength of light and the complex-valued refractive index at the incident wavelength.

Scattering

Anything that causes a change to the trajectory of light can be called scattering. Scattering is responsible for the twinkling of stars, the turbidity of milk, and the color of rainbows. Conventionally, reflection and refractions fall under this category. Scattering can either be elastic or inelastic. In elastic scattering, the excitation and emission wavelengths are the same. Typically, scattering is combined with the phenomenon for absorption. For instance, Beer-Lambert's law can be modified to include a scattering coefficient, µs.

For smaller objects on the scale of 0.1-100 µm, depending on the size and shape of the particle, scattering can be described as Rayleigh, Mie, or as geometric scattering. Rayleigh scattering occurs when the particle size is smaller or the same size as the wavelength of light and is homogenous in all directions. Mie scattering describes the scattering when the particle size is 1-10 times the wavelength. For Mie particles, typically over 90% of the light is forward scattered and 1-5% is back-scattered. Geometric scattering is described using Snell's law where the particle sizes are considerably larger compared to the wavelength.

Fluorescence

When absorbing a photon, an electron in a molecule becomes "excited" into a higher energy level. This higher level is unstable, so eventually the electron will relax down to its ground state and can release that energy as a photon in a process called fluorescence. While the electron is in the excited state, a very small (generally nanosecond-scale) amount of time passes and a small amount of energy can dissipate in vibrational relaxation. This causes the energy of the emitted photon to be somewhat less than the originally absorbed energy. This results in the emitted photon having a longer wavelength than the absorbed photon. Additionally, the lag between the excitation and emission events is the fluorescence lifetime, which has the temporal profile of exponential decay. Fluorophores have unique absorption and emission spectra and fluorescence lifetimes that are generally dependent on their chemistry, but  can also be altered by their environment.
